| LED Spotlight FIR Heater | 650 Watt | 900 Watt | 1000 Watt |
|---|---|---|---|
| Maximum Heating Coverage: |
8.49-11.21 m² |
8.09-10.12 m² |
8.09-10.12 m² |
Please consider the area you need to heat before placing an order. The maximum heating coverage is an approximate guide—actual performance may vary depending on your room’s insulation, ceiling height, and layout. Poorly insulated, older, or high-ceiling spaces may require additional or higher-wattage panels to maintain comfortable temperatures.
If you’re unsure how many panels you need, feel free to reach out for tailored advice—we’re here to help you get the most out of your heating!
Radiant Warmth Meets Ambient Lighting
The Thermisia LED Spotlight Frameless Aluminium Far Infrared Panel Heater combines efficient heating, modern design, and ambient LED lighting in a single sleek unit. Available in 650W, 900W, and 1000W variants, this innovative panel delivers powerful, energy-efficient warmth while enhancing your space with integrated dimmable LED spotlights.
Installation Requirements
While the panel includes an AUS/NZ plug for basic testing purposes, both the heater and the LED lights must be hardwired to separate circuits:
The heater should be hardwired and connected to a compatible thermostat for temperature control.
The LED lights should be hardwired to a lighting switch or ring main to allow separate operation.
Your electrician can easily remove the plugs during installation and hardwire the connections as required. This setup ensures the LED lights can be operated independently of the heater and are not limited by the thermostat’s on/off cycles.
Dual Function: Heating & Lighting in One Panel

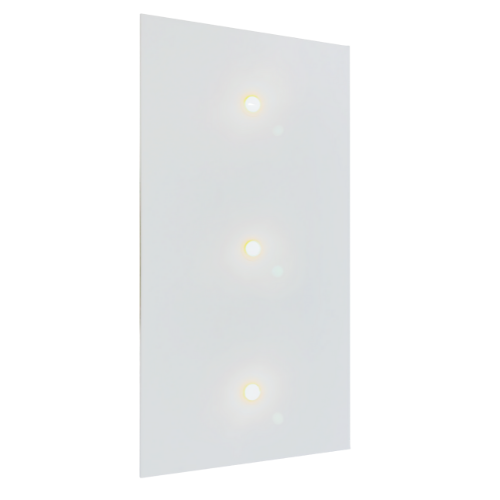

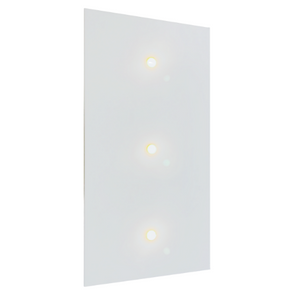

Each panel includes integrated LED spotlights — 3 for the 650W model and 4 for the 900W and 1000W versions — creating a warm ambient glow perfect for living areas, bedrooms, hallways, or commercial interiors. The LED and heating elements operate independently for maximum control and flexibility.
Advanced Far Infrared Technology
Using carbon crystal nanotech heating elements, the panel emits far-infrared rays that heat people and objects directly — not just the air. This creates a more consistent and comfortable environment while reducing energy consumption. A 13mm insulation layer on the rear surface improves energy retention and minimises heat loss.
Safe & Durable by Design
With a service life of up to 10 years and built-in overheat protection, this IP41-rated heater is designed for safe, long-term use in dry indoor environments. It includes a 3-year heater warranty and 2-year LED component warranty, ensuring peace of mind.
| LED Spotlight FIR Heater | 650 Watt | 900 Watt | 1000 Watt |
|---|---|---|---|
| Dimensions: | 1195x595x11mm | 1195x700x11mm | 1195x800x11mm |
| Power Rated: | 650W | 800W | 950 |
| Voltage: | 220V-240V | 220V-240V | 220V-240V |
| Amps: | 2.95-2.70 | 3.63-3.33 | 4.31-3.95 |
| Maximum Heating Coverage in m²: | 8.49-11.21 m² | 8.09-10.21 m² |
8.09-10.21 m² |
| Temperature Range: | 0/90°C | 0/90°C | 0/90°C |
| Overheat Protection: | 120/130°C | 120/130°C | 120/130°C |
| kWh Per Annum: | 1521 | 1921 | 2201 |
| Weight: | 10.6 KG | 11.63 KG | 12.60 KG |
| Energy Transfer: | 98% | 98% | 98% |
| Connection: | AUS/NZ Plug with 2-meter cable | AUS/NZ Plug with 2-meter cable | AUS/NZ Plug with 2-meter cable |
| Installation: | Wall/Ceiling | Wall/Ceiling | Wall/Ceiling |
| Warranty: | 3 Yrs* - 2 Yrs LED | 3 Yrs* - 2 Yrs LED | 3 Yrs* - 2 Yrs LED |
| LED Spotlight FIR Heater | 650 Watt | 900 Watt | 1000 Watt |
|---|---|---|---|
| Surface Design | Frameless Powder Coated Heat Resistant Aluminium | Frameless Powder Coated Heat Resistant Aluminium | Frameless Powder Coated Heat Resistant Aluminium |
| Heating Element | Mesh Carbon Crystal Nanotech Ink | Mesh Carbon Crystal Nanotech Ink | Mesh Carbon Crystal Nanotech Ink |
| Material | Aluminium | Aluminium | Aluminium |
| Construction | Folded Aluminium with Insulation Layer | Folded Aluminium with Insulation Layer | Folded Aluminium with Insulation Layer |
| Fixings | Wall / Ceiling | Wall / Ceiling | Wall / Ceiling |
| Connection |
AUS/NZ Plug | 2-meter cable - LED Dimmable Driver
|
AUS/NZ Plug | 2-meter cable - LED Dimmable Driver |
AUS/NZ Plug | 2-meter cable - LED Dimmable Driver |
| Service Life | 10 Years | 10 Years | 10 Years |
| Warranty | 3 Yrs* - 2 Yrs LED | 3 Yrs* - 2 Yrs LED | 3 Yrs* - 2 Yrs LED |
| IP Rating: | IP41 | IP41 | IP41 |
| Country of Manufacture | Made in China |
Thermisia Infrared Panel must be used in conjunction with thermostat controls units. Recommended installed by approved installer.
