Product Overview
Coverage Area
| Maximum Heating Coverage: | 8.33-9.16 m² |
|---|
Please consider the area you need to heat before placing an order. The maximum heating coverage is an approximate guide—actual performance may vary depending on your room’s insulation, ceiling height, and layout. Poorly insulated, older, or high-ceiling spaces may require additional or higher-wattage panels to maintain comfortable temperatures.
If you’re unsure how many panels you need, feel free to reach out for tailored advice—we’re here to help you get the most out of your heating!
Key Features
Description

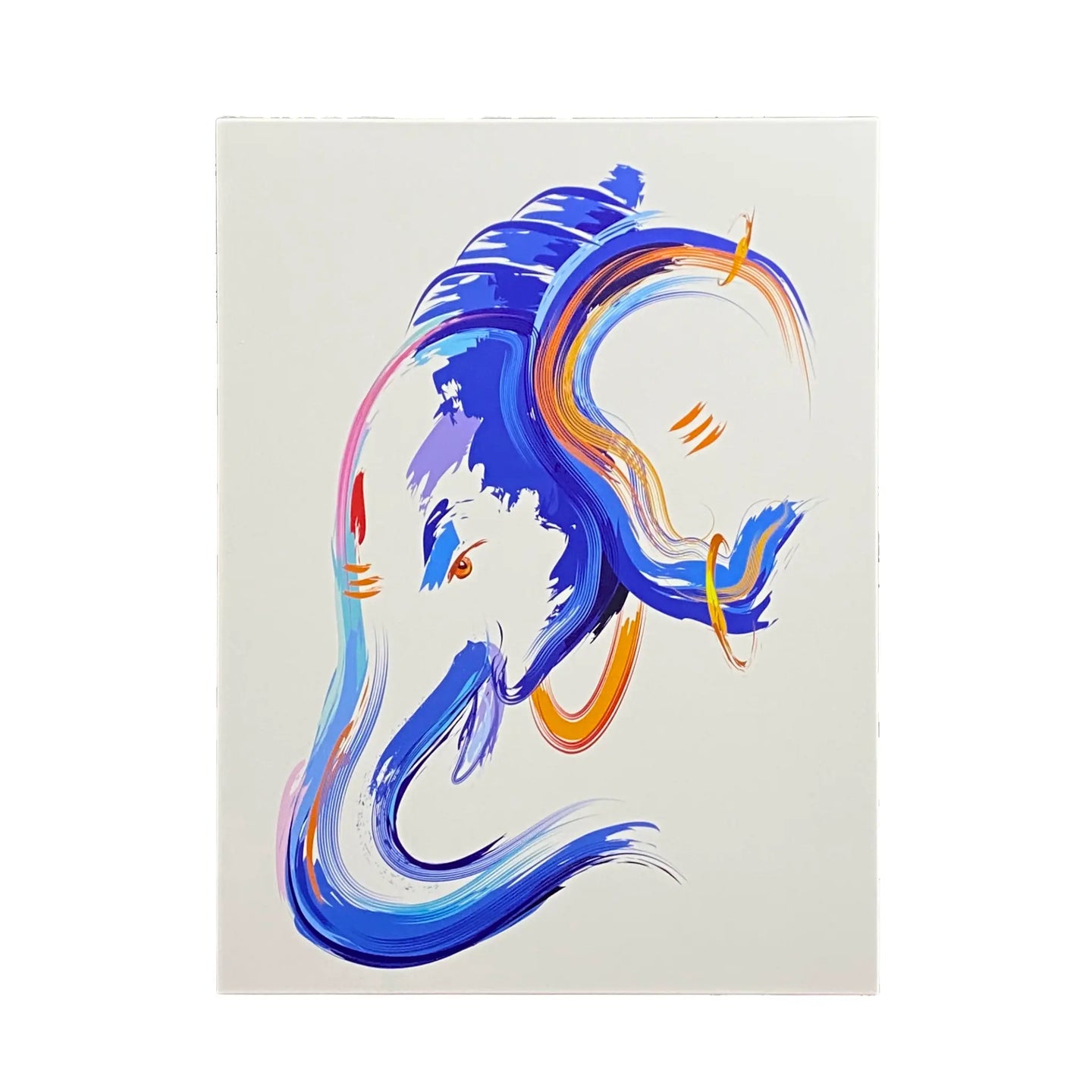

Add bold, cultural artistry to your space with the Thermisia 500W Smart Panel Heater – Lord Ganesha. This UV-printed panel features a detailed and vibrant illustration inspired by traditional Indian iconography, blending striking design with practical comfort.
The panel uses far-infrared heating technology, which warms people and surfaces directly—providing even, energy-efficient heat while maintaining a quiet, unobtrusive presence in your room. It’s a smart solution for small to medium spaces, with a slim profile that fits easily on a wall or ceiling.
With integrated Zigbee technology, this heater connects to the Smart Life or Tuya app, allowing you to control temperature, set schedules, and monitor usage remotely from your phone or tablet.
Technical Specifications
| Surface Material: | Aluminium |
|---|---|
| Dimensions: | 600x800x18mm |
| Power Rated: | 500 Watt |
| Voltage: | 220V- 240V |
| Amps: | 2.27-2.08 |
| Maximum Heating Coverage in m² : | 8.33-9.16 m² |
| Temperature Range: | 0/85°C |
| Overheat Protection: | 120/130°C |
| kWh Per Annum: | 1170 |
| Weight: | 7.1 KG |
| Colour: | White or Black |
| Energy Transfer: | <98% |
| Connection: | AUS/NZ Plug with 2-meter cable |
| Installation: | Wall/Ceiling/Grid Ceiling |
| Warranty: | 3 Years* |
Material Specifications
| Surface Design | Frameless White Powered Coated Heat Resistant Aluminium |
|---|---|
| Heating Element | Mesh Carbon Crystal Nanotech Ink |
| Material | Aluminium |
| Construction | Folded Aluminium with Insulation Layer |
| Fixings | Wall/Ceiling/Grid Ceiling |
| Connection |
AUS/NZ Plug with 2-meter cable
|
| Service Life | 10 years |
| Warranty | 3 Years* |
| IP Rating: | IP41 |
| Country of Manufacture | Made in China |
Thermisia Infrared Panel must be used in conjunction with thermostat controls units. Recommended installed by approved installer.
