Product Overview
Coverage Area
| Maximum Heating Coverage: | 8.33-9.16 m² |
|---|
Please consider the area you need to heat before placing an order. The maximum heating coverage is an approximate guide—actual performance may vary depending on your room’s insulation, ceiling height, and layout. Poorly insulated, older, or high-ceiling spaces may require additional or higher-wattage panels to maintain comfortable temperatures.
If you’re unsure how many panels you need, feel free to reach out for tailored advice—we’re here to help you get the most out of your heating!
Key Features
Description

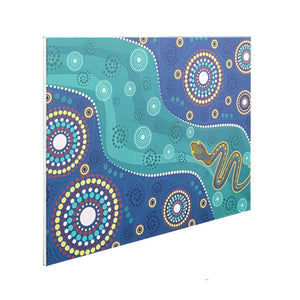

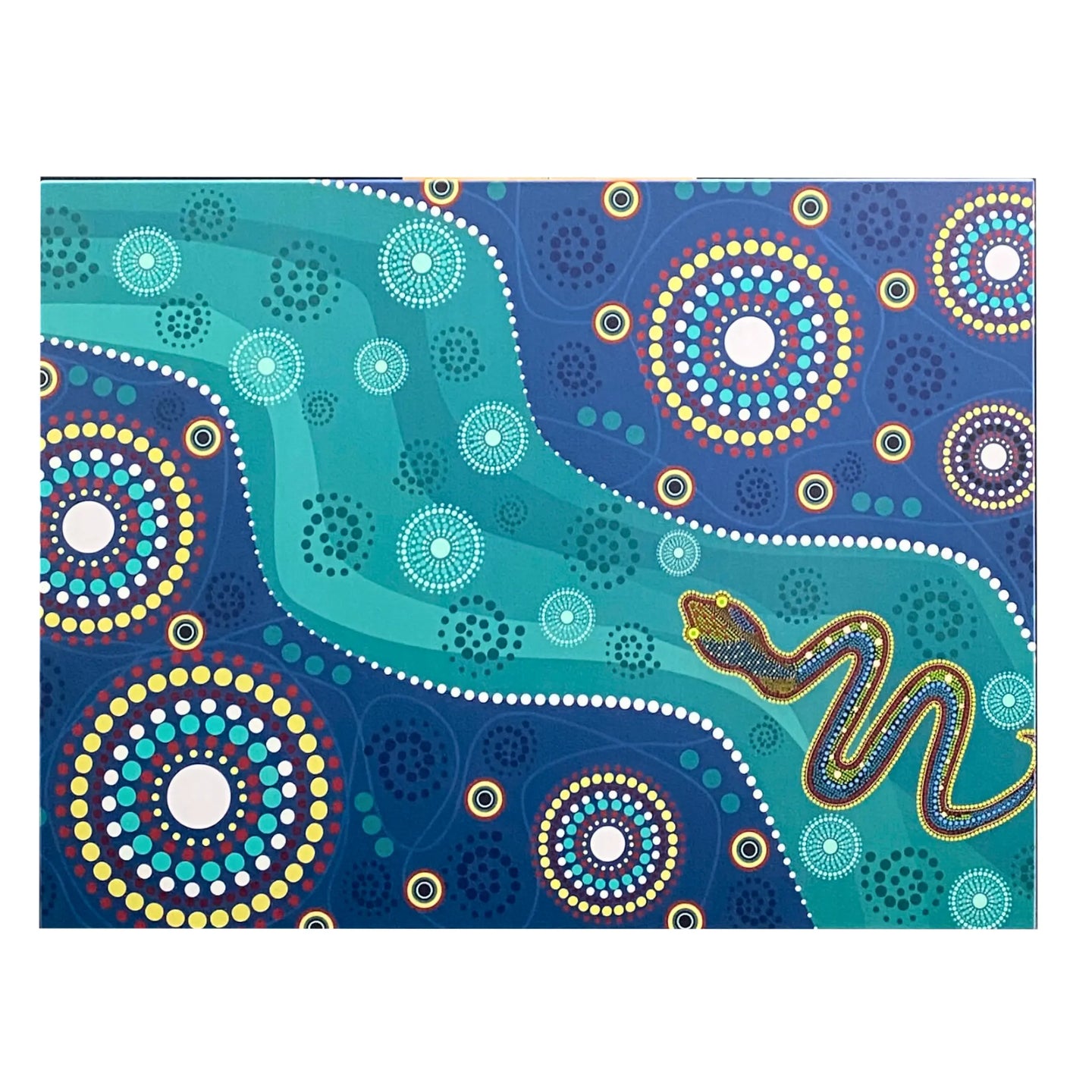

Bring warmth and meaningful design into your space with the Thermisia 500W Smart Panel Heater – Aboriginal Art. Featuring a high-resolution UV print inspired by traditional Indigenous Australian styles, this heater offers both visual impact and efficient, targeted heating.
Using advanced far-infrared technology, it gently warms people and surfaces in the room rather than the air, creating a more consistent and energy-conscious heat. The slim, frameless design mounts easily to the wall or ceiling and fits seamlessly into both modern and classic interiors.
With built-in Zigbee smart tech, this panel works with both Smart Life and Tuya apps, giving you full control over your heating—adjust the temperature, automate your schedule, or monitor energy use from your smartphone, wherever you are.
Technical Specifications
| Surface Material: | Aluminium |
|---|---|
| Dimensions: | 600x800x18mm |
| Power Rated: | 500 Watt |
| Voltage: | 220V- 240V |
| Amps: | 2.27-2.08 |
| Maximum Heating Coverage in m² : | 8.33-9.16 m² |
| Temperature Range: | 0/85°C |
| Overheat Protection: | 120/130°C |
| kWh Per Annum: | 1170 |
| Weight: | 7.1 KG |
| Colour: | White or Black |
| Energy Transfer: | <98% |
| Connection: | AUS/NZ Plug with 2-meter cable |
| Installation: | Wall/Ceiling/Grid Ceiling |
| Warranty: | 3 Years* |
Material Specifications
| Surface Design | Frameless White Powered Coated Heat Resistant Aluminium |
|---|---|
| Heating Element | Mesh Carbon Crystal Nanotech Ink |
| Material | Aluminium |
| Construction | Folded Aluminium with Insulation Layer |
| Fixings | Wall/Ceiling/Grid Ceiling |
| Connection |
AUS/NZ Plug with 2-meter cable
|
| Service Life | 10 years |
| Warranty | 3 Years* |
| IP Rating: | IP41 |
| Country of Manufacture | Made in China |
Thermisia Infrared Panel must be used in conjunction with thermostat controls units. Recommended installed by approved installer.
